4CH D1 Realtime H.264 Pentaplex Network DVR
• Pentaplex mode: recording, playback, setup, backup, network and mobile phone surveillance simultanously
• 4CH D1 simultaneously playback with 4CH audio
• Max. resolution of VGA output is 1280*1024.
• Support 1 BNC, 1 Spot, 1 VGA, 1 HDMI Output
• Various recording modes: schedule, manual, motion
• Various searching modes: time, event (motion detection), recording file list, image
• Strong log, privacy mask and watermark function
• Powerful remote surveillance, playback, recording, control, menu setup, recording backup
• Perfect support of IPhone, IPad, Blackberry, Google phone, Symbian and Windows mobile
• Support PTZ control with preset, cruise and track scans
• Support 1 x SATA HDD, USB Backup
• Power DC12V
• Compact chassis

System Compression Format H.264
OS Embedded Linux
Video Input 4CH, BNC (1.0Vp-p, 75Ω)
Standard Output 1*BNC, 1*Spot, 1*VGA, 1*HDMI
Audio Input 4CH
Output 1CH
Bidirectional Talk YES
Recording
Resolution 4 D1 Realtime
Recording Mode Timer, Manual, Motion Detection
Playback Playback Channel 4CH
Search Mode Time, Event, File Management
Backup USB Disk 1 USB 2.0 port
DVD Burner -
Backup Format DAT or AVI
Remote Application Dual Stream Master stream: 30(NTSC)/25(PAL)fps CIF per channel
Network stream: 1/2fps CIF per channel
Browser IE (windows XP/ Vista/ 7), Safari(Mac OS)
Master Stream in Network YES
CMS Free (Windows OS)
Mobile Phone SuperCam/pro/HD for iPad/iPad2/iPhone/Blackberry/Android
User Access 10 users online with professional authority management
Alarm Alarm Input 4 CH
Alarm Output 1 CH
Storage HDD 1 SATA
e-SATA -
Max HDD after Deploying DVD -
PTZ PTZ 1*RS485
PTZ Protocol PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP,VISCA,
SAMSUNG, RM110,HY,N-CONTROL
Network Ethernet 10 / 100 Mbps Ethernet (RJ-45)
Protocol TCP/IP, DHCP, DDNS, NTP, SMTP
Others
Power Supply DC12V
Operating Temperature 0°C ~50°C
Humidity 10% ~ 90% Humidity
Product Dimension 11.75" (l) x 10" (w) x 2.25"(h)

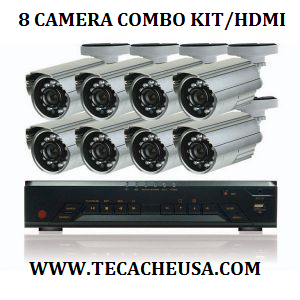

Package Contents
* 8 Channel DVR

* IR cameras X 8 (with 3.6mm Fixed Lens)

* User Manual

* Software CD

* Camera Cables x 8 (60 ft)

* Power Supply for DVR

* Power Supply for Cameras

* 8-way Splitter Cable

* Cameras Stands x 8

* Hard Drive (500GB)

* Remote Control

* Mouse
Dimensions (Package)
* 14.50" x 11.50" x 16"
Weight (Package)
* 23.60 lbs
