New Sony 700 TVL Varifocal 36IR Night Vision CCTV Camera

*2.8~12mm Varifocal FOCUS & ZOOM
*Sony EFFIO Highest 700 TV Lines
*OSD Menu
*36IR up to 100FT Clear Night Vision

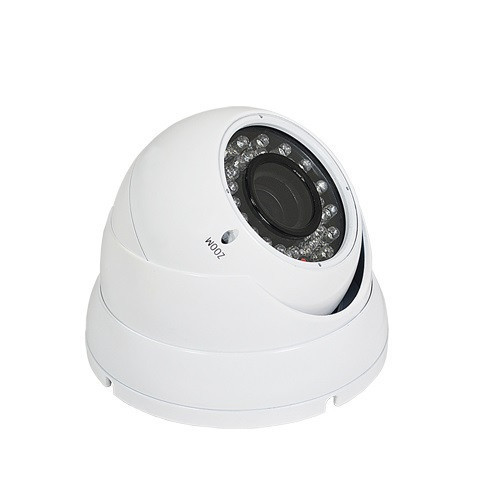

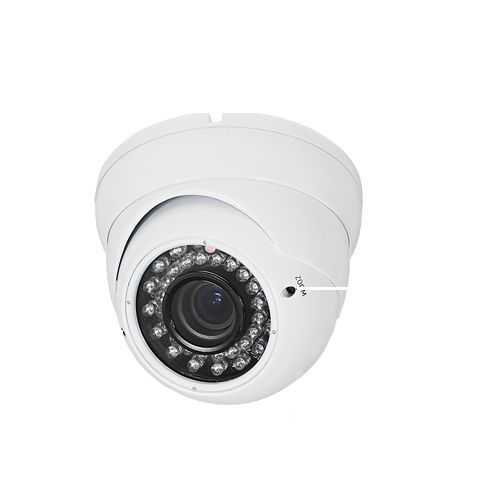

This weatherproof dome IR camera with varifocal lens is for outdoor and indoor use. It uses high resolution Sony EFFIO image sensor with 700 TV Lines which gives crisp and clear color video during daytime and black and white image during night-time. It has 36 infra-red LED which gives an illumination distance up to 100 feet. The sturdy aluminum alloy camera housing is bundled with necessary installation hardware which can be mounted on wall or ceiling. The camera lens is 2.8~12mm focal length with a wide view angle of over 114 degrees. This IR or night vision security camera is compatible with all professional grade video surveillance/security systems. The camera provides a BNC connection for video.

What is OSD Menu?

OSD means on-sreen display, it's a menu system for TV, Monitor...etc. Now many companies are providing high resolution security camera which contain the OSD menu.

Using the OSD menu, people can adjust varies of setting for security camera including exposure, white balance, back light compensation, day & night selection, , Motion, privacy...etc.

-White Balance

-Exposure

-Brightness

-Black Light Compensation

-Day & Night

Specification:

Image Sensor: Varifocal Zoom Lens 2.8mm ~ 12mm Sony EFFiO Sensor
TV System: NTSC
Effective Pixels: NTSC: 510 (H) x 492 (V)
Horizontal Resolution: 700 TV-Lines
Scanning System: 2:1 Interlace
Number of IR LEDs: 36
Minimum Illumination: 0 Lux (
IR on)
Infrared Illumination (Night Vision): Visible up to 100 feet
Synchronization System Internal Synchronization
S/N Ratio > 48dB
Gamma: 0.45
Auto Gain Control: Built-in
Lens Mount Board Lens: 2.8~12mm
Operating Temperature: -20C ~50C / -5F ~ 120F
Weatherproof: Yes
Power: DC 12V1.5A or higher

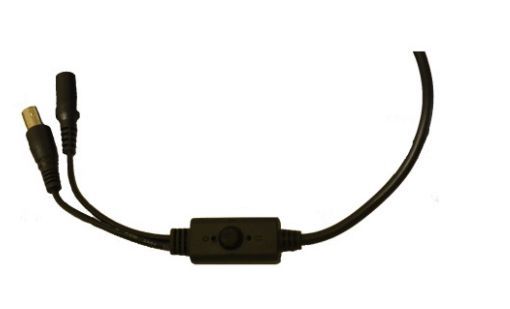

Video Out: 1.0V p-p 75 O, BNC Connector
Auto Iris: Video / DC
Back Light Comp: Auto
Auto White Balance: Auto
Protection Rating: IP 66
Dimensions(WxDxH): 131 x 93 mm
Weight: 1.87lb
Material: Aluminium Alloy

What is included?

* 1 x Sony Effio 700 TV Lines Varifocal 2.8~12mm CCTV Camera

* 1 x Hardware Pack

* 1 x Retail Box
