Description:

This high quality IP Camera will allow you to view the located area through the internet easily. This is a 2011 Model IP Camera which has better audio and video quality. Pan and tilt 300/200. Supports smart phones such as iPhone, Androids etc. Night vision distance is up to 11 meters. We are confident to offer a 12 month warranty. If anything goes wrong or you are not happy with it. Customers are always our top priority.

Features:
* CMOS 300,000 pixel
* Support M-JPEG Compression format Video
* φ5x10 IR-LED, automatic operates for night vision (Up to 11 meters)
* Motion detection alert via email or upload image to FTP
* Support multi kinds of network connection methods: TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPOE etc.
* Multi-level users management with password protection
* Allow remote viewing & record from anywhere anytime
* Support IE browser, FIRFOX, you can use and control the ip cam anywhere in the world
* Built-in Microphone, Speaker allows you to communicate with people directly
* Allow remote Pan/Tilt control (Pan: 270°& Tilt: 120°)
* Online detection, continuously dialing function while the line is broken
* Visit IP camera through domain name no need to IP address
* High image & video quality, Two-way audio monitoring
* Simple and quick to setup, friendly user interface

* Supported language: English/Spanish/German/French/Italian/Chinese

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Video

Compression format

Motion-JPEG-N

Signal system

CMOS 300,000pixel

Frame Rate

25fps PAL; 30fps NTSC

Resolution

VGA (640*480), QVGA (320*240)

Video Adjustment

Brightness, contrast, chroma, saturation.

Minimum illumination

0.1 Lux/F1.2

S/N ratio

>48DB (AGC off)

Shutter speed

1/50s(1/60s)-1/100,000s

white balance，

Auto

Backlight balance

Lens

Standard: 3.6mm

Audio

Processor

double directs voice Monitor（Built-out MIC）

Audio gain

auto audio gain control（AGC）

Night vision

Night vision

φ5x10LED lights, night vision distance 10m

Revolution control

Electronic motor

Electronic motor control inside

Revolution angle

Level direct: 220°, Perpendicularity direct: 90°

Revolution speed

Level: 15°/ Second, Perpendicularity: 15°/second

Network

Network interface

RJ-45 10/100Mb self-adaptable Ethernet slot

Protocol

TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPOE, etc.

Simultaneous visitor

Support 5 direct visitors at the same time, but no limitation when using forwarder Server.

IP mode

Dynamic IP address, Static IP address, PPPOE

Other

Shape

Ceiling hemisphere

Use environment

Indoor use

Power

DC 5V 2A

Temperature

-10~50 °C

Humidity

95% RH

Size

Item size: 121*98*95mm

Packaging size: 201*189*124mm

Weight

Net: 245g; Gross: 628g

Attachment

Adaptor, Disc (including introduction), Manual, Bracket, Ruling (1.5m)

Alarm

Input/output

1/1

Intelligent Motion detection

Motion Detection setting

Alarm action

Support email, message, etc. alarm

System

System requirement

Microsoft Win98 SE/ME/2000/XP、Vista, Internet Explorer 5.0, NET4.5 or above

Features

Security Settings

Supports two-level password: administrator authority, user authority

DDNS（free）

Free DDNS bounded i.e., http://demo.easynp.cn.

Superiority

P2p technology, mobile view

Center management software (free)

1,4,9,16,25,36 or 64 multiple video display optional in one screen, support record, alarm, remote playback on records and other management functions.

Certification

Certification

ISO, CCC, FCC, CE

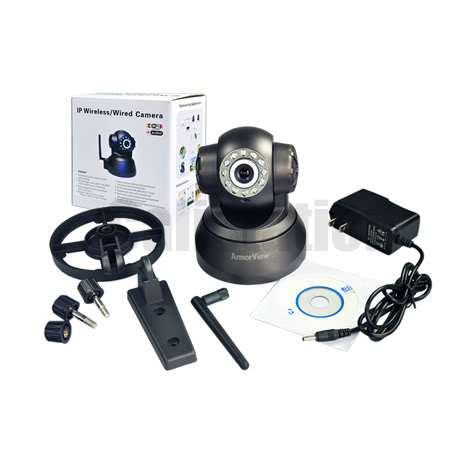

Package Includes:

IP Camera x1
Wi-Fi Antenna x1
CD and User Manual x1
Power Supply x1
Mounting Bracket x1
